Reading GPIB instruments into Excel with GPIBEE and VBA

Overview

This one skips the compiler entirely. A macro-enabled Excel workbook talks to an instrument through GPIBEE, and the readings land in cells: timestamped, formatted, ready to chart. Nothing to build, nothing to install beyond a VISA runtime.

The workbook has two sheets. One is an interactive command panel for poking at an instrument by hand, the Excel counterpart of the Lazarus demo. The other takes a run of measurements and writes them into a table.

Why Excel

Let me be honest about this one: Excel would not be my first choice for talking to a GPIB instrument, and it should not be yours either if you are building something serious. VBA is slow, error handling is awkward, and a workbook is a poor home for anything you intend to maintain for years. Python, C or Pascal are all better tools for the job, and there are tutorials here for each of them.

But sometimes it is exactly the right tool, and it is worth being honest about that too.

A great deal of measurement data ends its life in a spreadsheet. If your output is a column of numbers, a chart and a figure someone pastes into a report, then every other approach spends its first hour getting to where Excel already is. There is no project to set up, no dependencies to pin, no environment to recreate in two years when someone asks you to repeat the measurement. The workbook is the program, the data and the report in one file, and you can mail it to a colleague who will double-click it and have it work.

It is also the tool that is already installed and already familiar. On a bench where the person taking readings is not a programmer, the choice is not Excel against Python; it is Excel against writing numbers on paper. Automating that away is worth a great deal, even in a language none of us would pick for anything else.

Use it for quick logging, for one-off characterisation runs, for handing a repeatable measurement to somebody who does not write code. Reach for a real language when you need speed, timing, decisions, or anything that must still work reliably next year.

Prerequisites

• A GPIBEE, with an instrument on the GPIB bus.
• 64-bit Excel on Windows. The macros use Declare PtrSafe, which needs VBA7, so Office 2010 or newer.
• A VISA implementation installed. See below.

Install a VISA

VISA is the standard API between your code and the instrument, and it is what the macros call. It is not part of Windows and not part of Office, so it has to be installed separately.

NI-VISA and the Keysight IO Libraries Suite work too. Any of them installs a 64-bit visa32.dll in C:\Windows\System32, which is what the macros bind to. The name is confusing and correct: on 64-bit Windows the 64-bit DLL is still called visa32.dll, and Windows hands each process the right one.

Download and open

Unzip it and double-click HP34401A_VISA_Excel.xlsm. The .xlsm extension means macro-enabled, which is the whole point here.

Enable the macros

Excel will almost certainly greet you with a yellow bar across the top:

Click Enable Content. Until you do, the buttons are inert: the macros are the program, so with macros disabled there is nothing but a formatted spreadsheet. Excel remembers the decision for this file, so you only do it once.

The two sheets

GPIB Demo is the interactive panel: type a command, press a button, watch what comes back. HP34401A Reader is the logging example: say how many readings you want and it fills a table.

The GPIB Demo panel

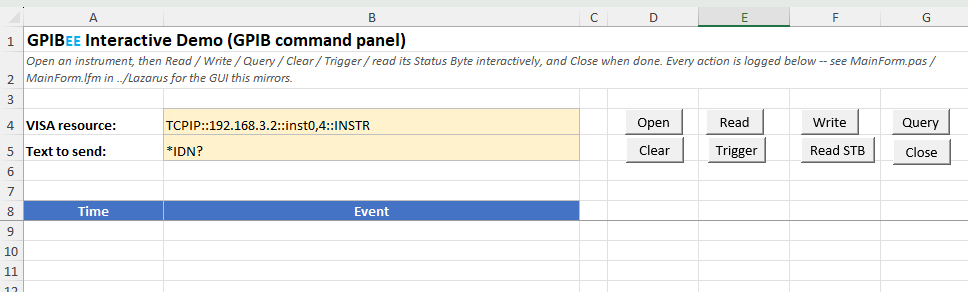

Two cells to fill in. VISA resource is the instrument's address, pre-filled with:

Read from the left: reach the device over TCP/IP, at 192.168.3.2, and talk to GPIB primary address 4 behind it. That address is a GPIBEE connected over USB, which always appears on its default 192.168.3.2. It is used here purely because it is predictable. Over Ethernet everything works identically; you simply enter whatever address the adapter has on your network.

Text to send is the command, pre-filled with *IDN?.

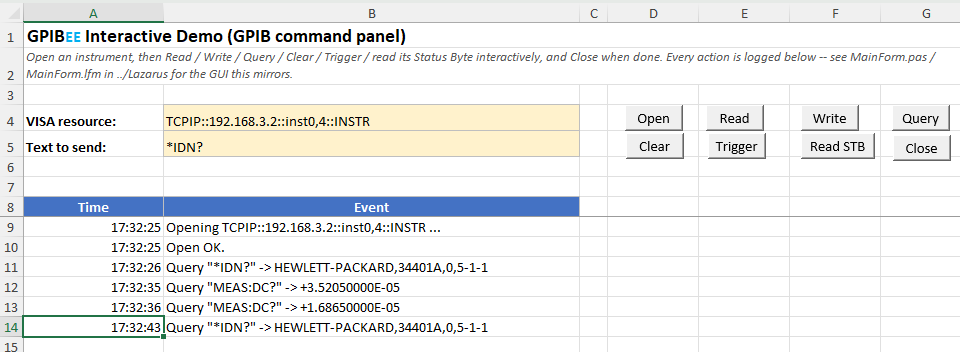

Press Open, then Query. Query writes the command and reads the answer in one step, so on any SCPI instrument that is enough to see it respond. Press Close when you are finished. Every action appends a timestamped line to the log:

The other buttons cover the rest of the common operations. Write sends the command without reading, for things like *RST that produce no answer. Read fetches a reply on its own. Clear resets the instrument's interface and empties its buffers, which is the first thing to try when an instrument has got itself confused. Trigger sends a Group Execute Trigger. Read STB performs a serial poll and returns the status byte, the usual way to ask whether the instrument has finished or has an error waiting.

That panel is genuinely useful beyond this tutorial. When a measurement script misbehaves, being able to send single commands by hand and see the raw replies settles the "is it the instrument or is it my code" question quickly.

The HP 34401A Reader

The second sheet does the thing Excel is actually good at: it takes a series of readings and puts them in a table.

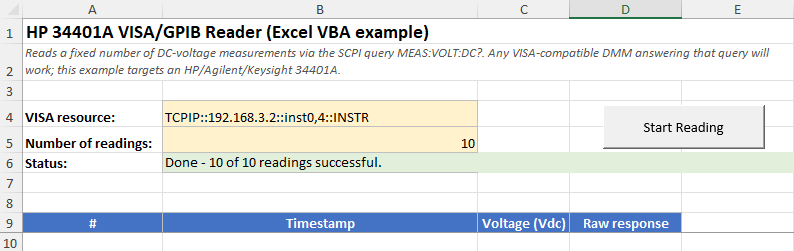

Set the resource name and how many readings you want, then press Start Reading. The macro opens the instrument, sends MEAS:VOLT:DC? the requested number of times, writes each result into the table and closes the session at the end. The status cell tracks progress while it runs.

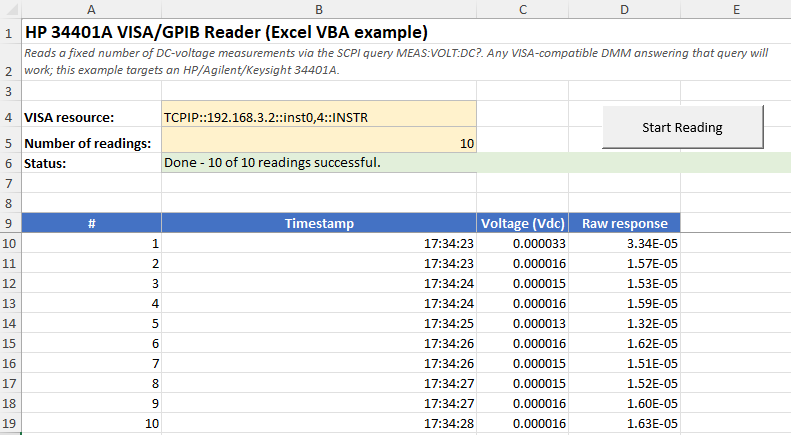

Four columns: the reading number, a timestamp, the parsed voltage, and the raw text the instrument sent. Keeping the raw response is worth the column. When a number looks wrong, the first question is always whether the instrument said something unexpected or the parsing went astray, and with both side by side you can see which.

MEAS:VOLT:DC? is used because it is simple and widely supported. Any VISA-compatible multimeter that answers that query will work; the example targets an HP, Agilent or Keysight 34401A. For a different measurement, change that one string in the macro.

Charting the readings

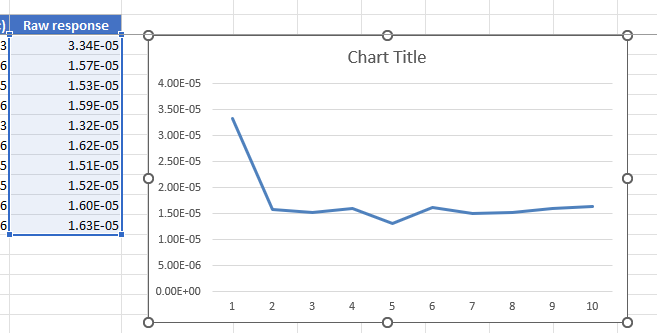

Once the numbers are in cells, the rest is ordinary Excel. Select the voltage column, choose Insert → Line chart, and the run is a picture:

This is the payoff, and the reason the Excel route exists at all. In any other language, getting from a working measurement to a chart someone can look at is another library and another hour. Here it is two clicks, and the file you email already contains the data, the chart and the code that produced them.

Looking at the macros

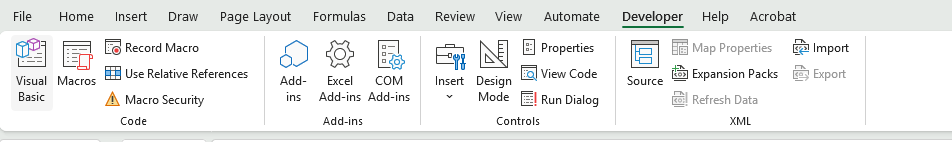

The code lives in the workbook. To see it, open the Developer tab and click Visual Basic:

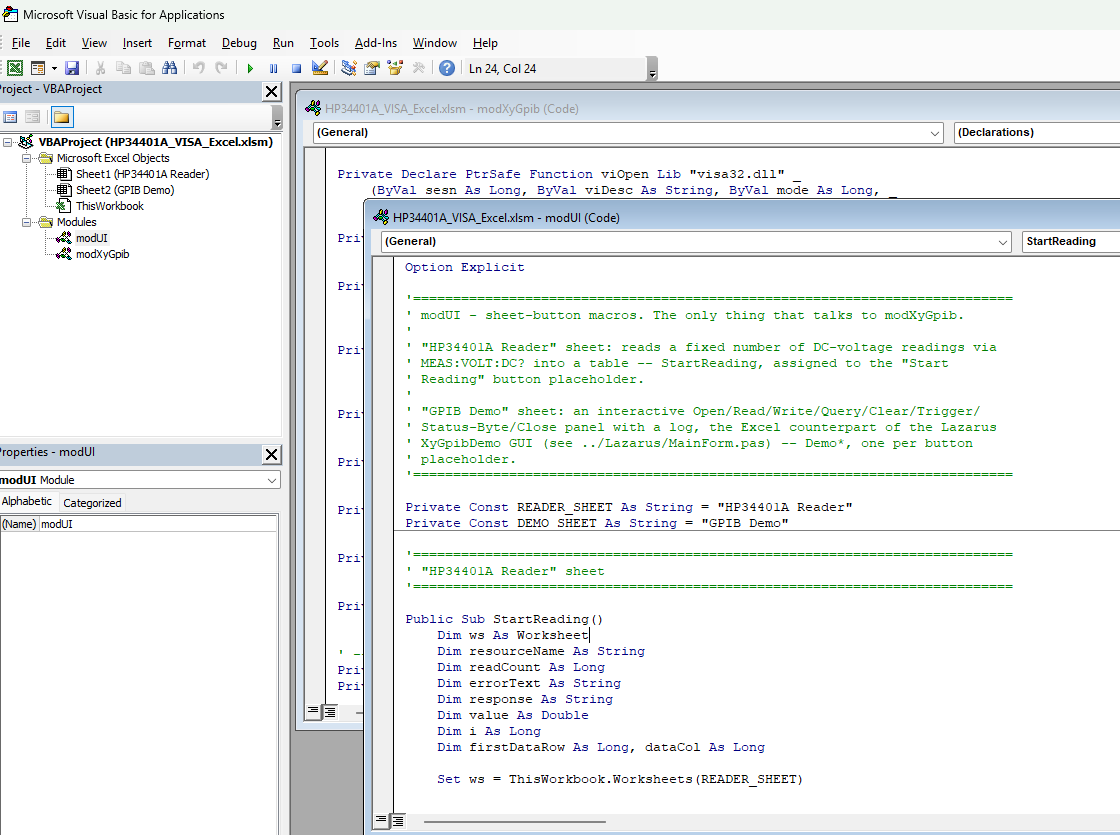

The editor opens on the project, with two modules under Modules:

The split matters: modUI never touches VISA directly, and modXyGpib knows nothing about sheets or cells. To build your own measurement, copy modXyGpib into your workbook untouched and write your own equivalent of modUI.

Termination and timeout

Termination is how both ends know a message has ended, and it is the usual reason a first attempt hangs until it times out.

This example keeps it simple: XyGpibWrite appends a line feed to everything it sends, and XyGpibRead strips a trailing LF, CR or CRLF from whatever comes back. That suits nearly every SCPI instrument, including the 34401A. Unlike the C and Pascal examples there is no choice to make, which is deliberate for a spreadsheet.

If your instrument wants a carriage return instead, change the one line in modXyGpib that appends vbLf to vbCr or vbCrLf. The stripping on the read side already handles all three.

The timeout sits near the top of modXyGpib:

Private Const IO_TIMEOUT_MS As Long = 3000
Private Const READ_BUFFER_SIZE As Long = 4096

It is in milliseconds and applies to every read and write. Three seconds suits most instruments, and it is an upper bound rather than a delay: a read that gets its answer at once returns at once. Raise it if you trigger long measurements, because a sweep that takes ten seconds needs a timeout longer than the sweep.

READ_BUFFER_SIZE caps how much a single read can return. 4096 bytes is generous for readings and identification strings; raise it if you are pulling back long error lists or captured data.

XyGpib reference

Everything modXyGpib exposes. Each function returns True on success, and passes back a readable message in errorText on failure, so no VISA status codes reach your macro.

A complete measurement is five lines:

Dim response As String, errorText As String

If XyGpibOpen("TCPIP::192.168.3.2::inst0,4::INSTR", errorText) Then
    If XyGpibQuery("MEAS:VOLT:DC?", response, errorText) Then
        Range("A1").Value = Val(response)
    End If
    XyGpibClose errorText
End If

What the XyGPIB VBA module is and what not

XyGpib is example code, not a product. It is one VBA module inside the workbook you just downloaded. There is no add-in to install, no version to track, no release notes and no support commitment behind it. It is yours to read, change, rename, cut down or delete outright.

It is meant to be taken and used. That is the point of it being here: copy modXyGpib into your own workbook and you have GPIBEE talking to an instrument the same afternoon. The Declare statements with the right types, the session handling, the termination and the error text are all solved already, and getting the VISA declarations right in VBA is exactly the part that costs an afternoon of its own.

Working with VISA directly is a perfectly good choice. Everything XyGpib does, VISA does; it simply exposes fewer operations with an easier interface. The Declare statements are right there at the top of the module to copy and extend.
